Special Applications

Alcoa distributor icon

WorkHorse® Wheels

Disc brake protection and increased wheel load
Designed without ventilation holes to protect the disc brakes from sand and gravel.
Mainly used on construction vehicles with disc brakes.
Available in wheel sizes: 22.5”x9.00 ” (4335 kg max. load) and 22.5”x11.75”, offset 120 mm.

Forging process step 1

Low Deck Trailer Wheels

Special aplications low deck trailer wheel
17.5”x6.00” wheel

Max load is 2500 kg
10 mounting holes
Weighs only 12.6 kg!

17.5”X6.75” wheel

Max load 3000 kg
10 mounting holes
Weighs only 13.7 kg!

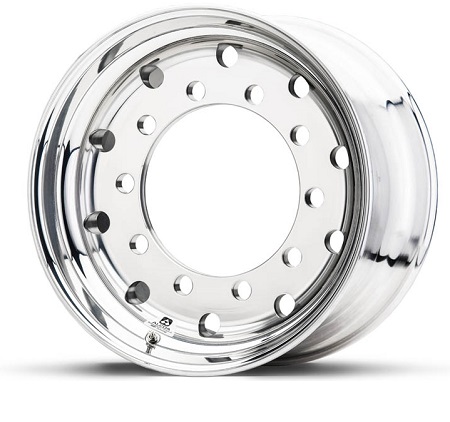

Wheels for Inloader Trailers

22.5”x11.75” wheel, offset 45 mm

Specifically for the transportation of glass and construction elements.
Weighs only 25 kg!
Max load 5000 kg

Special application wheels for inloaders

Wheels for Mega Trailers

Special application wheels for megatrailers
19.5”x14.00” wheel, offset 120 mm

10 mounting holes
Lightest in class! Weighs only 21.6 kg!

19.5”x14.00” wheel, offset 0 mm

8 mounting holes
Howmet Aerospace exclusive!
Weighs 23.6 kg.
